Manfrotto Pro Ground-Twin 100 Tripod Kit

Variable Fluid Drag System on PAN and TILT movements

Manfrotto Pro Ground-Twin 100 Tripod Kit

Manfrotto Pro Ground-Twin 100 Tripod Kit

Variable Fluid Drag System on PAN and TILT movements

SKU: 509HD,545GBK

Cat no: 19885

  • Variable Counterbalance system on TILT movement
  • Sliding plate for the fastest camera connection and set up
  • Ø100mm ball for levelling
  • Illuminated leveling bubble for easy setup
Add to wishlist

Estimated Delivery 2 to 3 days

£921.00 (ex vat) £1,105.20 (incl vat)

Manfrotto Pro Ground-Twin 100 Tripod Kit

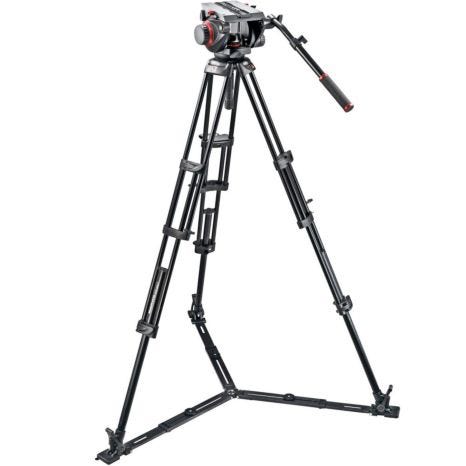

509HD fluid head (Ø100mm) + 545GB twin aluminum legs tripod with ground spreader + padded bag.

The 509HD is the result of an important technical evolution - the perfect synthesis between an innovative “bridge architecture” and Manfrotto’s cutting edge engineering: Bridging Technology - an exclusive Manfrotto patent. A new bridge leading the videographer and photographer to even better results with today’s high-definition cameras.

Product Specification

Weight 9805 g
Material Aluminium
Safety Payload Weight 13,5 kg
Min Height 48 cm
Maximum Height 172 cm
Head Type Video/Fluid Head
Leg Sections 3
Legs Tube Diameter 16, 25 mm
Quick Release Yes
Counterbalanced Weight 8,5 kg
Center of gravity 125 mm
Spreader low level - variable arm length
Closed Length 84 cm
Base Type 100 Ball
Accessory Compatibility 502HLV; 509HLV; 114MV; 181B; 537SPRB; 565
Attachment 1/4" screw, 3/8" screw
Battery Type Lithium
Bubble Spirit Level (No.) 1
Carrying Bag Included MB MBAG100PNHD
Center Column no centre column
Certifications WEEE; RoHS
Color Black
Easy Link Yes
Front Tilt -60° / +90°
Leg Type Twin
Leg Angles from 29° to 63°
Leg Lock Type Flip Lock
Maximum Working Temperature 60 C
Minimum Working Temperature -20 C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360
Plate Type 509PLONG
Tilt Drag continuously adjustable from 0 to max level

To take advantage of the warranty extension scheme, you must register your purchase at warranty.manfrotto.com.

This product is warranted to be fit for the purpose for which it has been designed, and to be free from defects in materials and workmanship. This guarantee does not cover the product against subsequent damage or misuse. The period of validity of the Standard Limited Warranty is defined by the law in force in the country, state or region where the product is sold. Please retain your receipt as proof of purchase to repair your product under warranty.

Beyond the standard compulsory coverage outlined above, this product is eligible for a warranty extension. The Limited Conventional Warranty Extension does not affect the standard compulsory coverage.
