Sony CBK-WA02 Wireless LAN Adapter

Wireless LAN Adapter for streaming and transfer applications

Sony CBK-WA02 Wireless LAN Adapter

Sony CBK-WA02 Wireless LAN Adapter

Wireless LAN Adapter for streaming and transfer applications

SKU: CBK-WA02

Cat no: 21406

  • Wireless network adapter with dual band transfer at 2.4 or 5 GHz switchable
  • Cable length is optimized for PXW-X500, PXW-X200 and PXW-X180 camcorders
  • 3G/4G dongle and Wi-Fi adapter are compatible for better signal transmission
  • This module is attached using 1/4-inch accessory shoe
  • The Network Module Extension Adapter CBK-NA1E helps attach a 3G/4G/LTE modem to specified camcorders
User Guide

Estimated Delivery > 2 Weeks

£125.00 (ex vat) £150.00 (incl vat)

Sony CBK-WA02 Wireless LAN Adapter

Wireless LAN Adapter for streaming and transfer applications

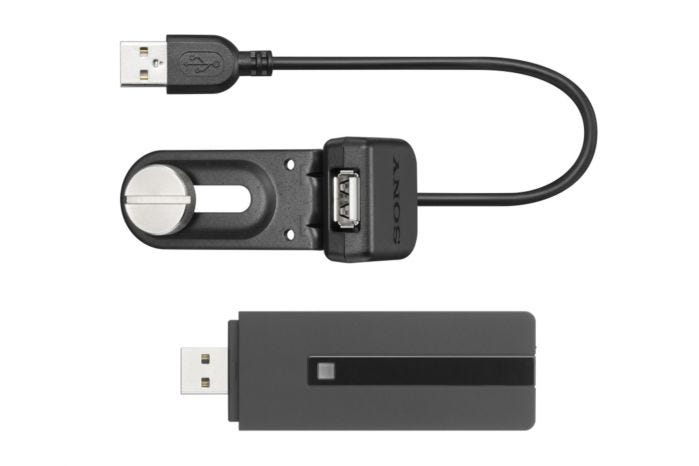

The CBK-WA02 Wireless LAN adapter enables wireless data transfer from specified Sony camcorders to other devices on the same network. The kit consists of two units: the CBK-WA02 Wireless LAN Adapter and CBK-NA1E - modem attachment for 3G/4G/LTE communication.

This kit is designed for use with camcorders such as PXW-X500, PXW-X200 and PXW-X180 that are compatible with wireless LAN network operation and have appropriate firmware. CBK-WA02 is also compatible with wireless adapters CBK-WA100 and CBK-WA101 with V2.0 or greater firmware installed.

Key Features:

  • Wireless network adapter with dual band transfer at 2.4 or 5 GHz switchable
  • The Network Module Extension Adapter CBK-NA1E helps attach a 3G/4G/LTE modem to specified camcorders
  • Cable length is optimized for PXW-X500, PXW-X200 and PXW-X180 camcorders
  • 3G/4G dongle and Wi-Fi adapter are compatible for better signal transmission
  • This module is attached using 1/4-inch accessory shoe

Product Specification

Weight: Approx. 20 g
Dimensions (W x H x D): 25.5 x 11.0 x 81.0 mm
Power Requirements: DC 5 V
Power Consumption: 2.5W
Operating Temperature:

  • 0 to +40 ℃
  • +32 to +104 °F

Operating Humidity: 20% to 90%
Standards compliance: IEEE 802.11a/b/g/n/ac
Security: 64/128 bit: WEP, WPA/WPA2

Frequency
USA/Canada:

  • 2.400 GHz – 2.473 GHz
  • 5.150 GHz – 5.350 GHz
  • 5.470 GHz – 5.585 GHz
  • 5.655 GHz – 5.725 GHz
  • 5.725 GHz – 5.850 GHz

Europe:

  • 2.400 GHz – 2.483 GHz
  • 5.150 GHz – 5.350 GHz,
  • 5.470 GHz – 5.725 GHz
  • 5.730 GHz – 5.850 GHz

China:

  • 2.400 GHz–2.483 GHz
  • 5.150 GHz–5.350 GHz

Japan:

  • 2.400 GHz ~ 2.483 GHz
  • 5.150 GHz ~ 5.350 GHz
  • 5.470 GHz ~ 5.725 GHz

Data rate (standard value)*

  • Max. 866 Mbps (IEEE802.11ac)
  • Max. 300 Mbps (IEEE802.11n)
  • Max. 54 Mbps (IEEE802.11a, IEEE802.11g)
  • Max. 11 Mbps (IEEE802.11b)

Host Interface: USB 2.0 Type A
Supplied Accessories:

  • Network Module Extension Adapter CBK-NA1E
  • Installation Manual
  • Warranty
  • WEEE Directive paper
  • RoHS Directive paper
  • Network Module Extension Adapter CBK-NA1E
  • Installation Manual
  • Warranty
  • WEEE Directive paper
  • RoHS Directive paper
