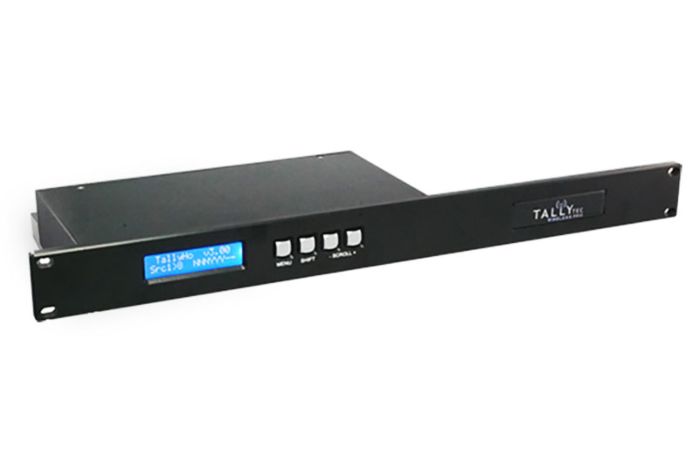

TallyTec Pro Base16 Transmitter - Rack-Mounted

Designed for use in production and broadcast studios as the standard wired or wireless transmitter

TallyTec Pro Base16 Transmitter - Rack-Mounted

TallyTec Pro Base16 Transmitter - Rack-Mounted

Designed for use in production and broadcast studios as the standard wired or wireless transmitter

SKU: TA-GBASE16RMT

Cat no: 18060

  • Supporting up to 16 channels on 8 wired or 16 wireless receivers
  • Gives a range of 2km
  • Powered through mains or 12v battery
  • Receives information from a mixer’s PGM output
  • Has the ability to operate with any vision mixers using open/closed contact or +5v or -5v
Add to wishlist

Estimated Delivery 2 to 3 days

£950.00 (ex vat) £1,140.00 (incl vat)

TallyTec Pro Base16 Transmitter - Rack-Mounted

Designed for use in production and broadcast studios as the standard wired or wireless transmitter

The TallyTec Pro Base16 Rack-mount offers a 16 channel solution. Designed for use in production and broadcast studios as the standard wired or wireless transmitter supporting up to 16 channels on 8 wired or 16 wireless receivers giving a range of 2km. Powered through mains or 12v battery this robust transmitter continuously outputs both live and preview signals from a wide variety of mixers to 16 of our camera mounted receivers by wireless or by cat5/6 cable.

The transmitter receives information from a mixer’s PGM output and sends a pulse to turn on the red LED’s on the receiver assigned to this camera. If the mixer also generates information from Preview row, the TallyTec Pro transmits this and turns on the green LED located at the front and back of the receivers to keep the cameraman informed that his shot will be next on air. The front LED panel can be switched off if required.

Wired receivers are connected to the transmitter through 8 x RJ45 connectors located on the rear panel and are powered through the transmitter. The wireless are rechargeable from the Base unit and connect up to 2km from the base transmitter on . Each transmitter has 4 different ranges and each one of these ranges can support up to 16 channels in the 866/915MHz transmission waveband.

The TallyTec Pro has the ability to operate with any vision mixers using open/closed contact or +5v or -5v and is available in both desk top and rack mounted versions.

Key Features:

  • Supporting up to 16 channels on 8 wired or 16 wireless receivers
  • Gives a range of 2km
  • Powered through mains or 12v battery
  • Receives information from a mixer’s PGM output
  • Has the ability to operate with any vision mixers using open/closed contact or +5v or -5v

Product Specification

Dimensions: 25 x 32 x 6 cm
Supported

  • Wireless: 16 Channels
  • Wired: 8 Channels
  • 1x Power Supply
  • 1x USB cable
  • 1x Antenna
